Description

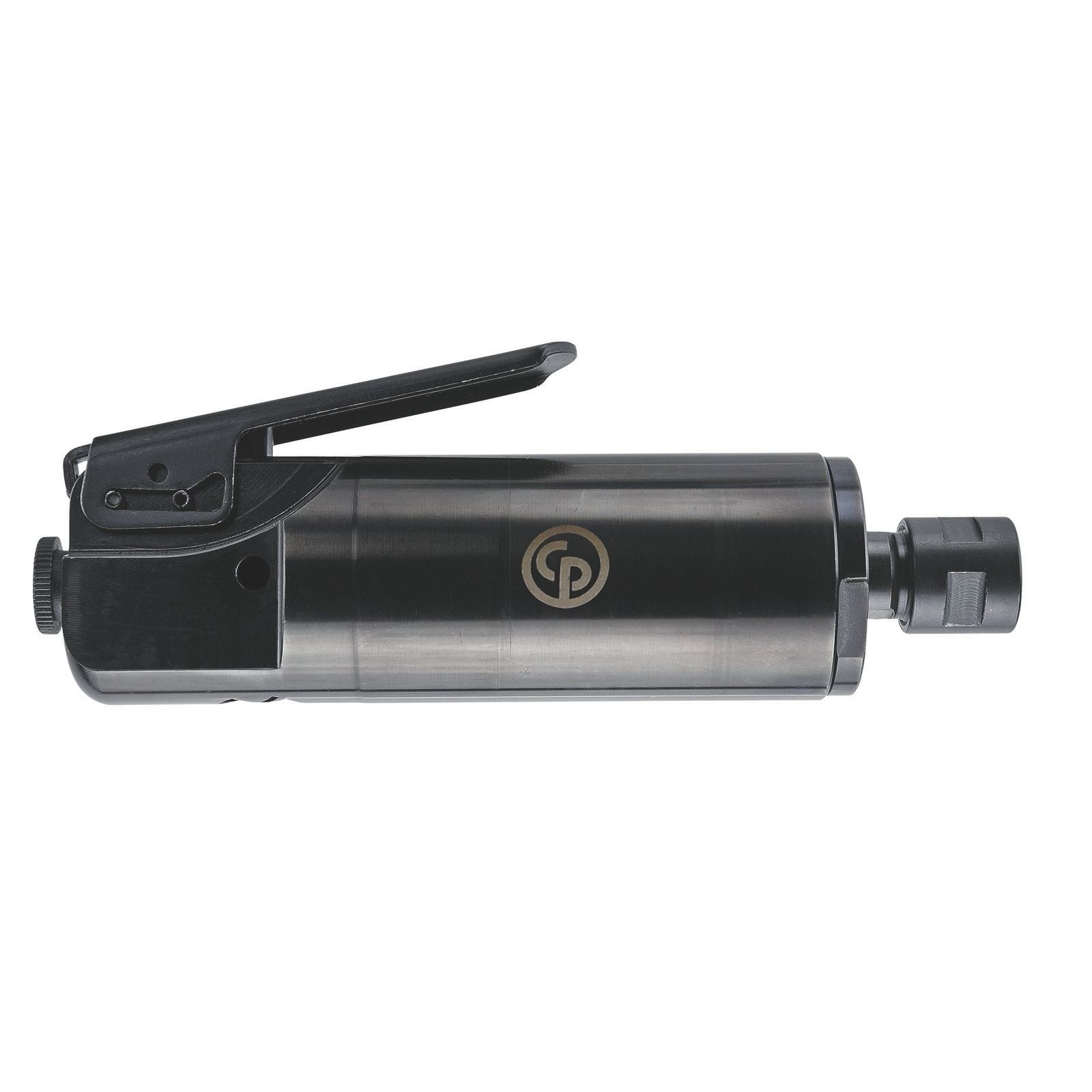

The CP9113G Series, a 1/4′ (6.35 mm) capacity die grinder with collet is an industrial maintenance and production tool for grinding, contouring, deburring, and cleaning applications. It delivers a powerful governed motor of 1 hp (750 W) and a free speed up to 25,000 rpm. Available in straight or extended housing collet spindle.
Country of origin is TW.
Customs tariff is 84671110
Design & Functions
Exhaust: Front
Collet/Collet holder/Collet nut type: Erickson serie 200 type
Max dynamic air working pressure: 6.3 bar
Min hose diam (5 m hose length): 10 mm
Sound Power (dba)-
Main Material type: Steel
Uncertainty vibration-K:1.8 m/s²
Min hose diam (16 ft hose length): 0.38 in
Length (L): 170 mm
Air consumption at load: 15 l/s
Free Speed: 25000 rpm
Sound Pressure: 92.9 d: B(A)
Vibration (m/s²)-
Angle Type: Straight
Air consumption at free speed: 17 l/s
Spindle lock: No
Max power: 750 W
Weight: 1.15 kg
Starting system: Safety lever
Rotative inlet: No
Collet max capacity: 1/4 (6.4mm)
Air inlet thread size (in): 3/8
Governor type: NA
Size & WeightMin hose diam (5 m hose length): 10 mm
Weight: 1.15 kg
Length (L): 170 mm
Min hose diam (16 ft hose length): 0.38 in
Show all specifications
